Ultima Carbon Disc Limited Graz

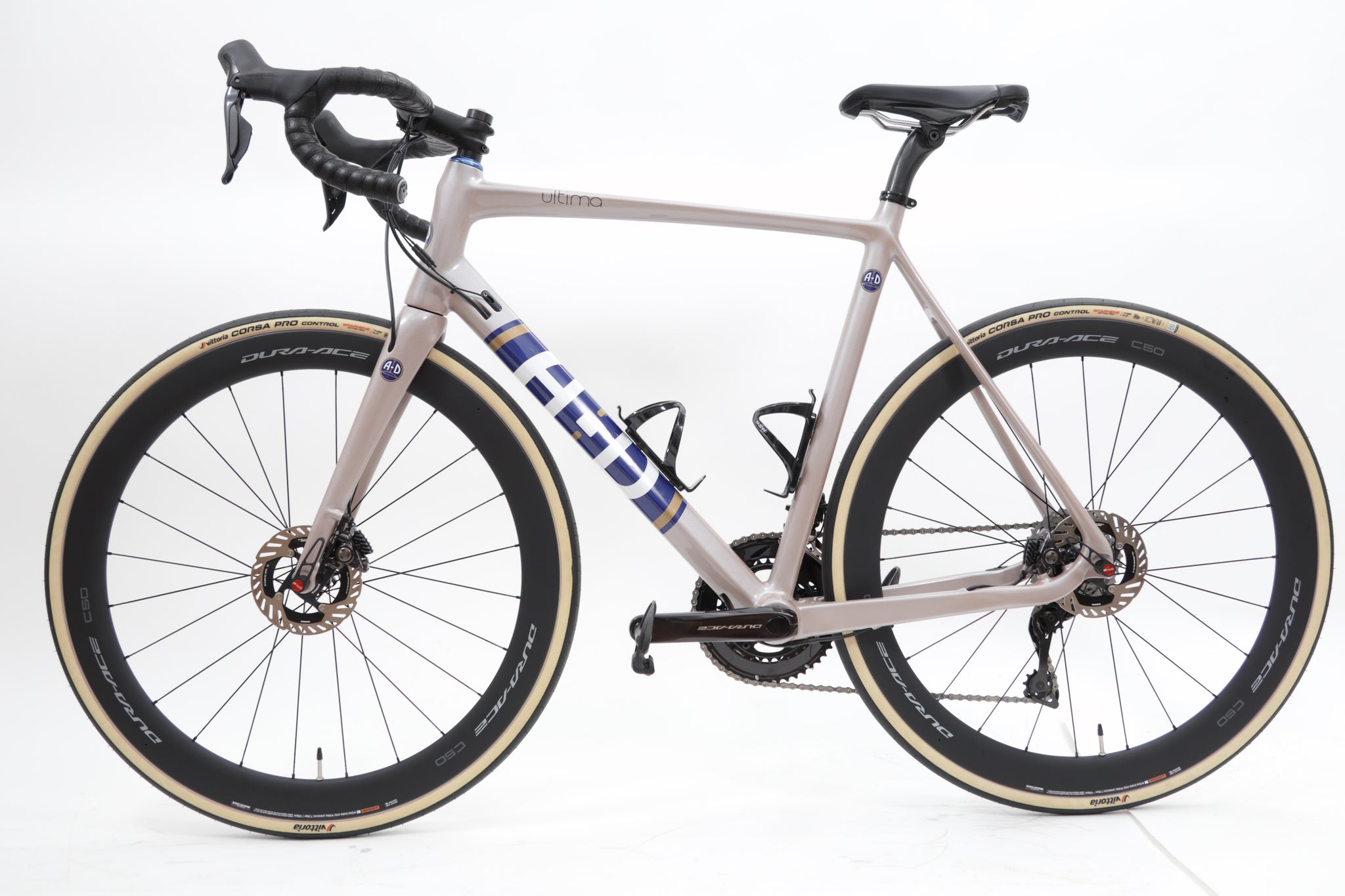

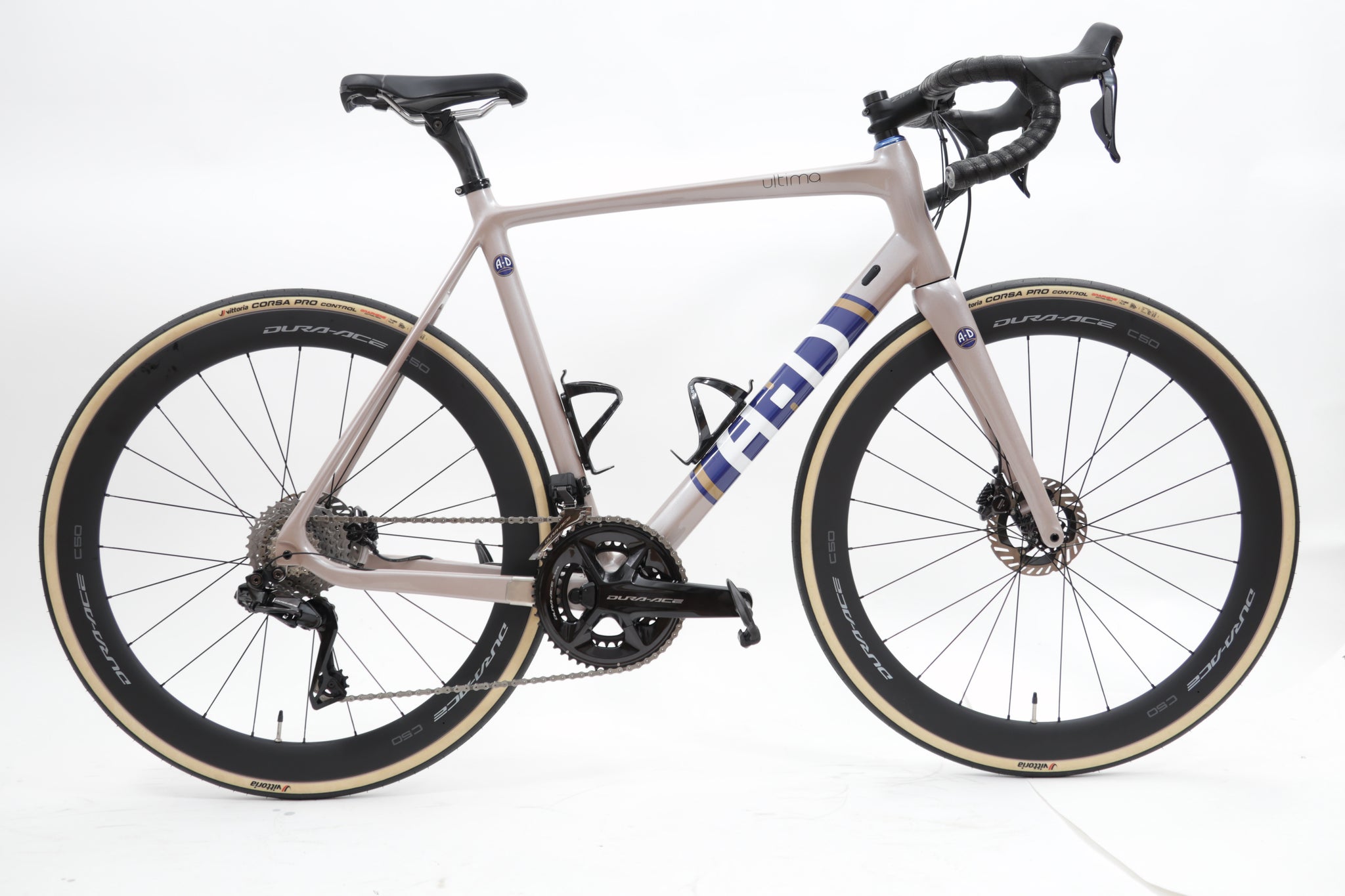

The Ultima Carbon Disc Limited Graz is a light and versatile road frameset for the competitor or enthusiast who requires the stiffness of thru-axle hubs, 28mm tire clearance, the stopping power of disc brakes and the option to run electronic shifting. The Ultima Carbon Disc Limited Graz channels the drama of road racing and represents the continued evolution of the A-D brand. The Ultima Carbon Disc Limited is the choice of A-D Racing for 2024.
Specifications

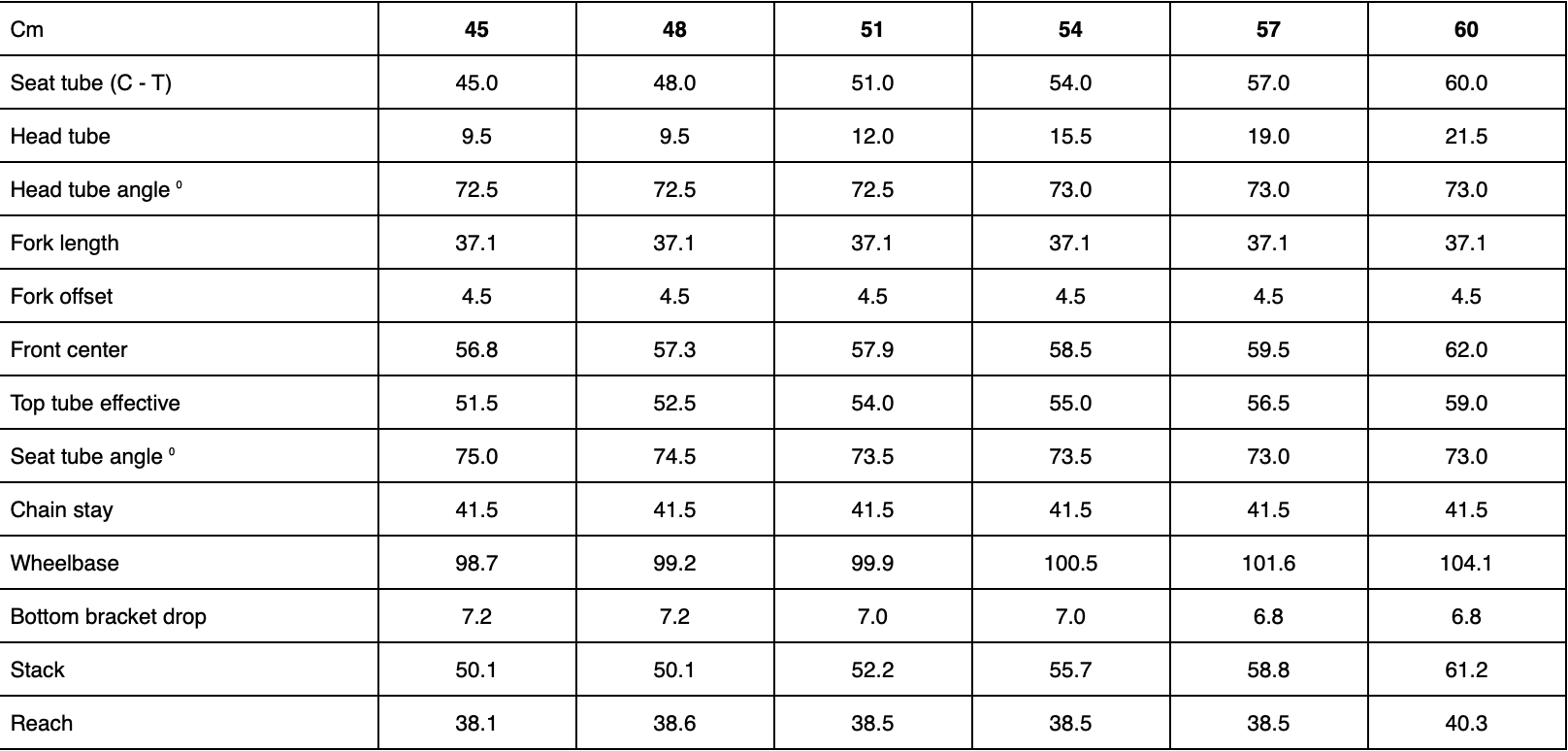

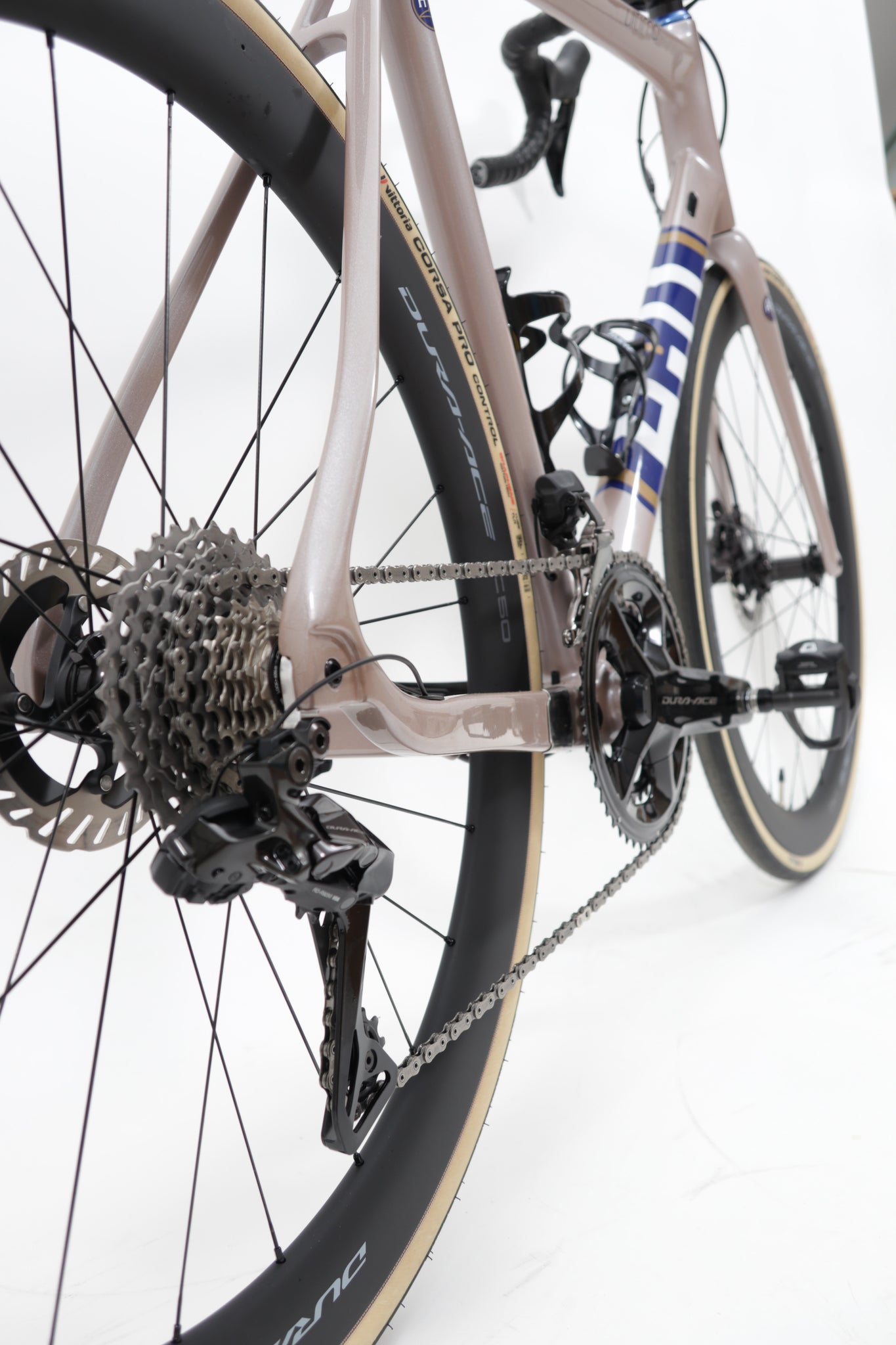

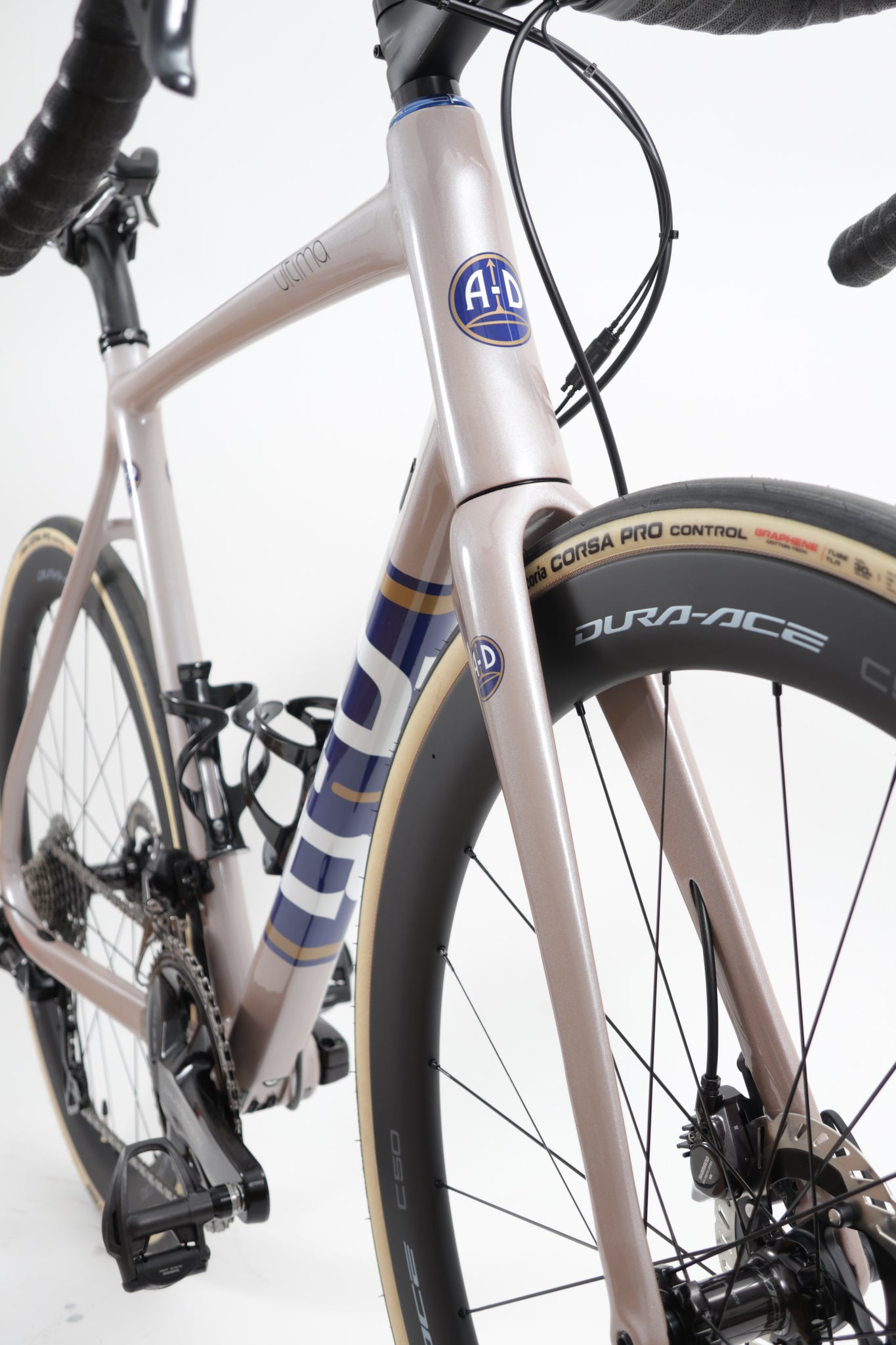

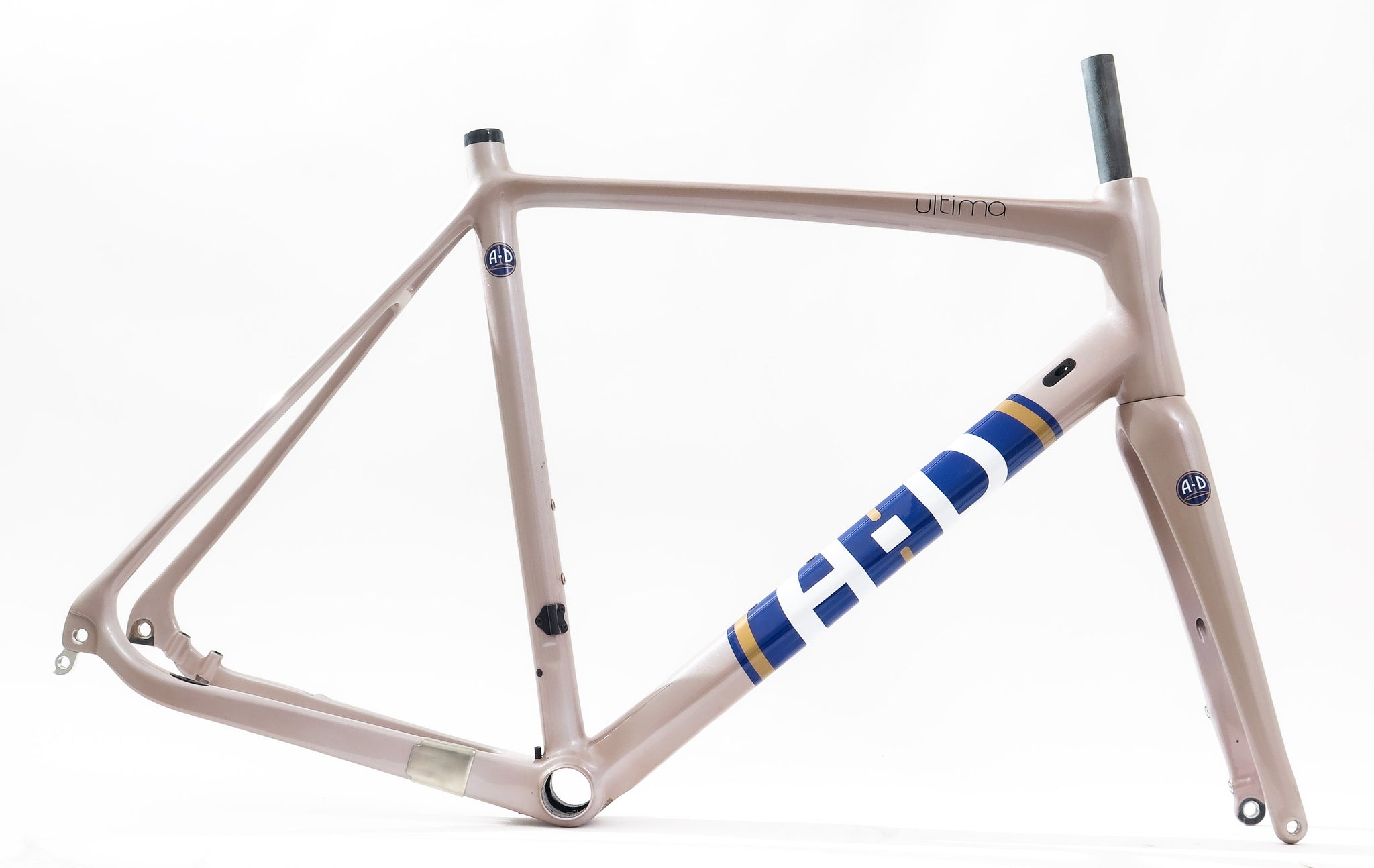

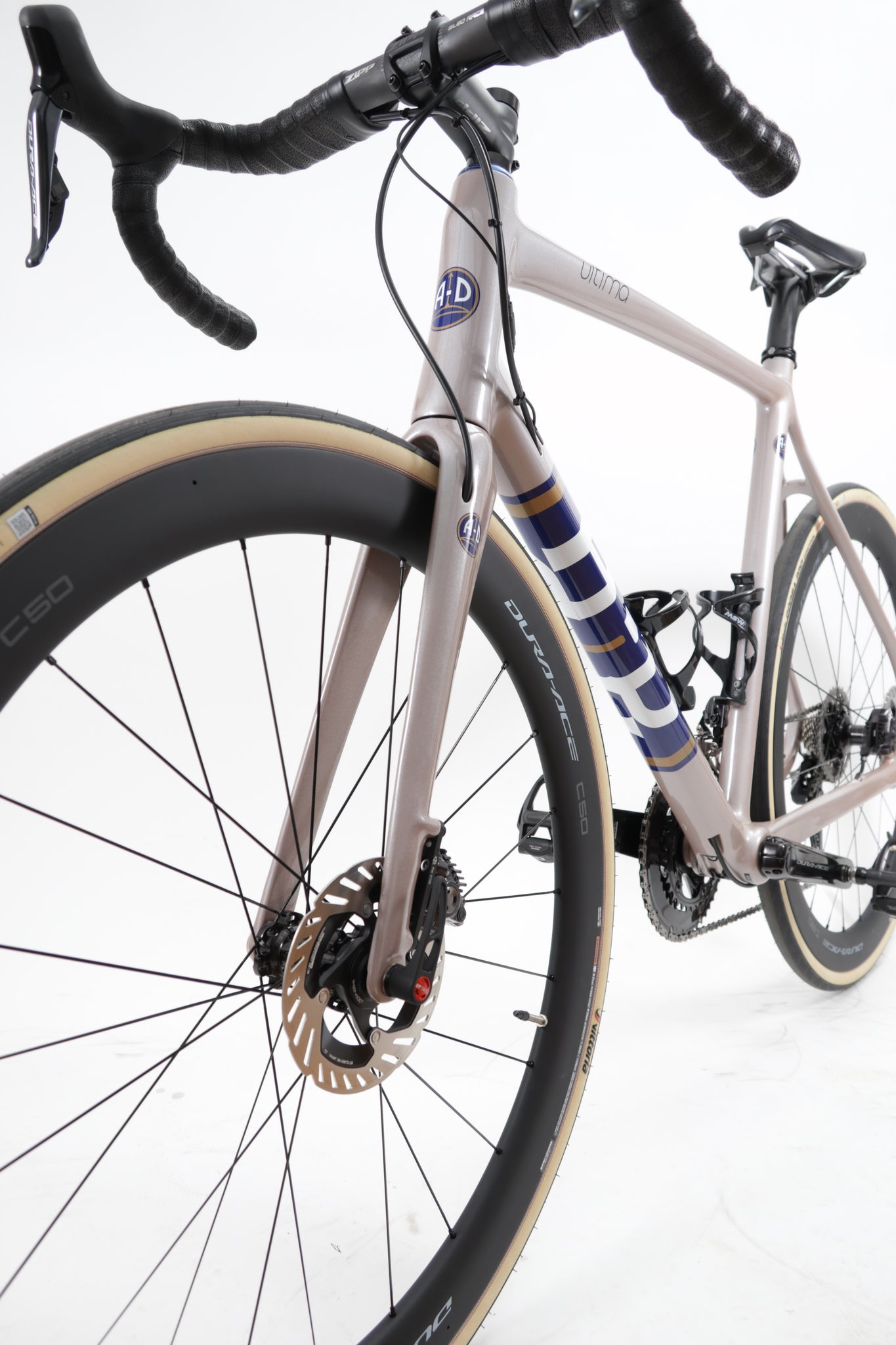

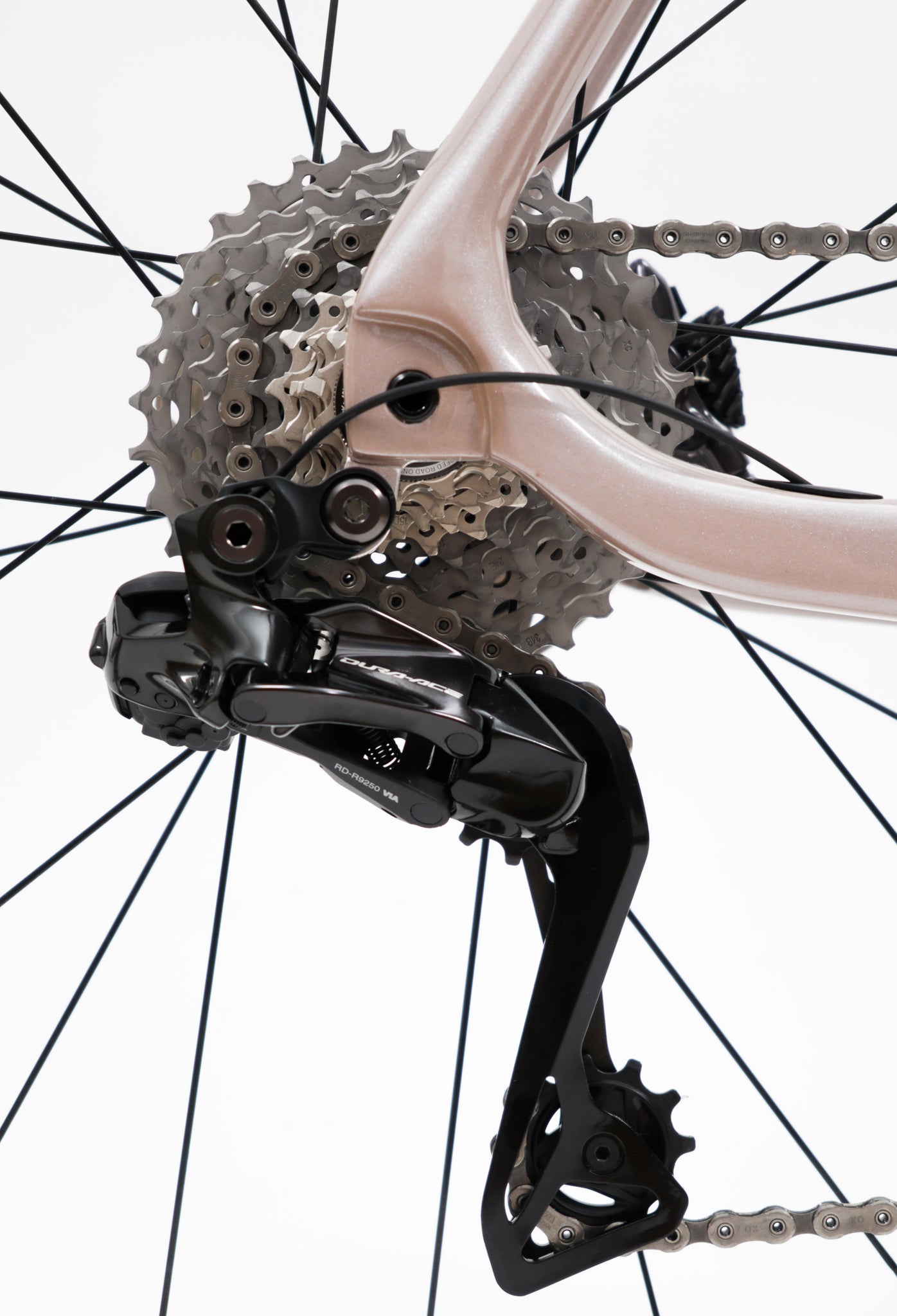

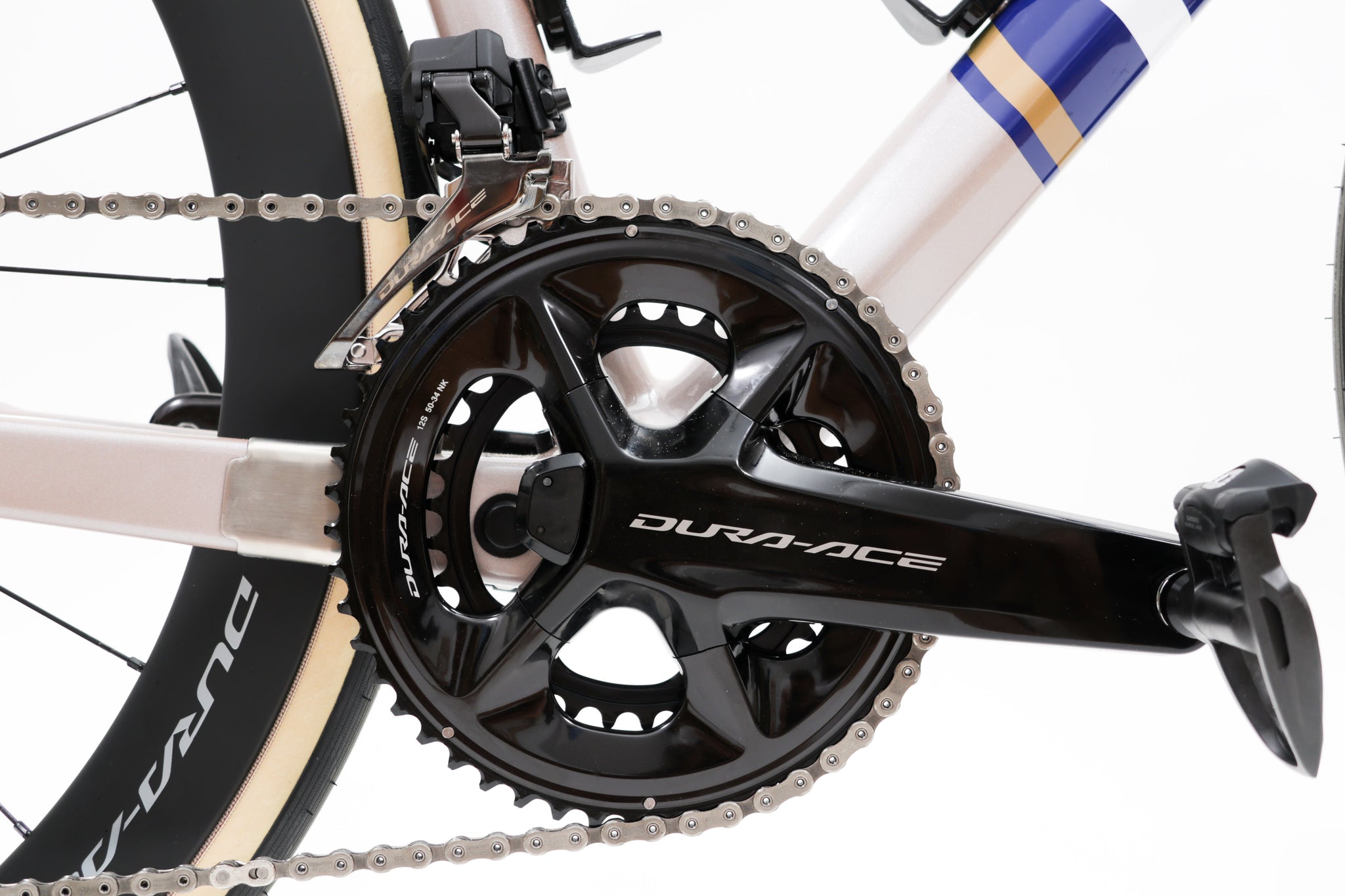

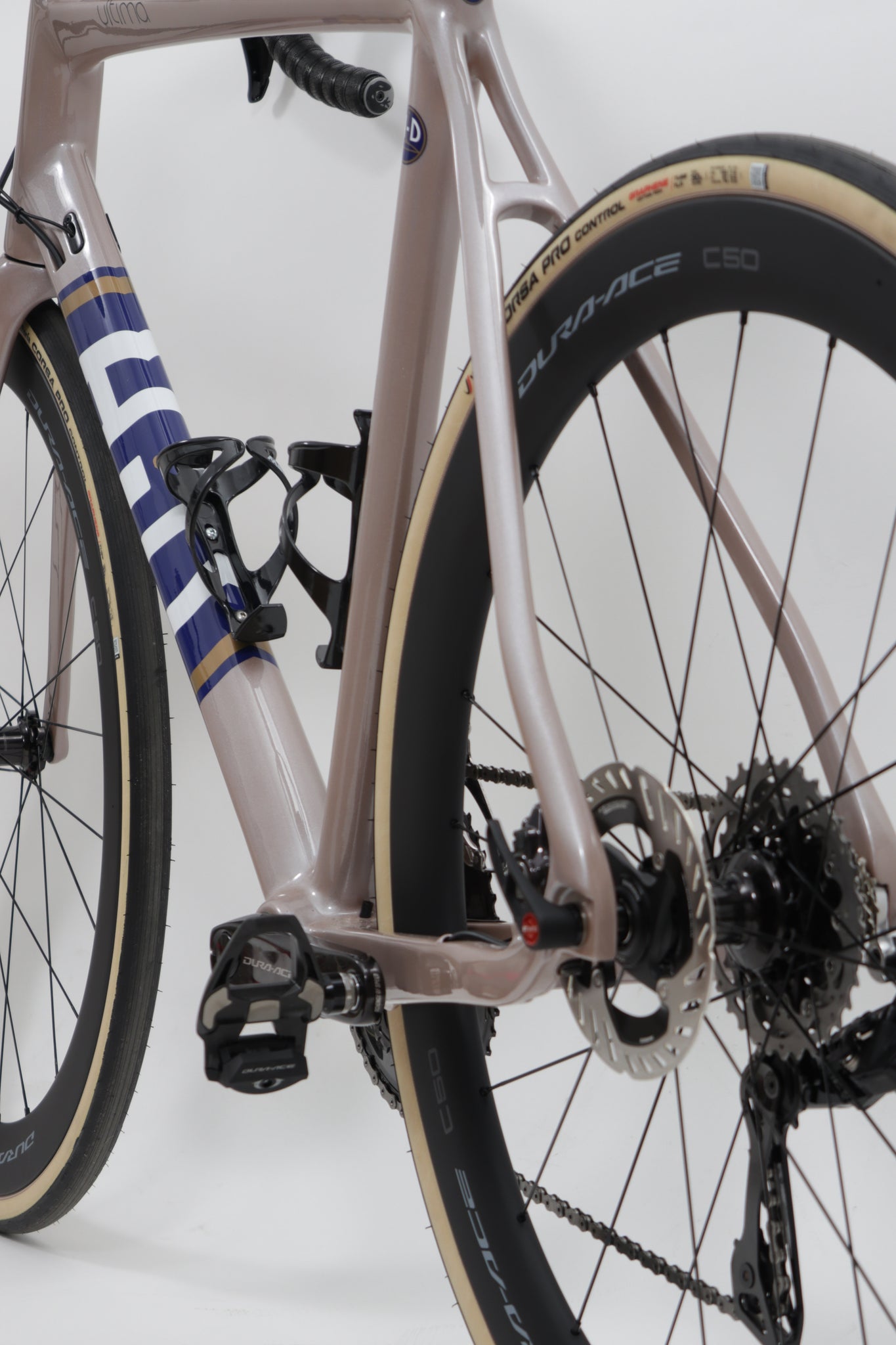

The Ultima Carbon Disc Limited Graz frameset features the A-D 37 carbon front fork (12 mm diameter thru-axle, flat mount), dual electronic or mechanical shifting compatibility and a BB86 Press Fit bottom bracket. The frame features tapered head tube (1 1/8 inch to 1 1/2 inch steer tube), 31.6 mm seat post diameter, replaceable rear derailleur hanger, flat type disc brake caliper mounts, asymmetric down tube, braze-on front derailleur hanger, Ultima lettering in the original American Hustle font, iconic A-D logo on the down tube, and distinctive Graz Rose Silver finish. The frame is available in six sizes. Thru axles sold separately. The size 54cm frame and fork together weigh 3 pounds 6 ounces or 1.5 kg. Recommended tire clearance is 28 mm.
